METAL TO METAL SEAL

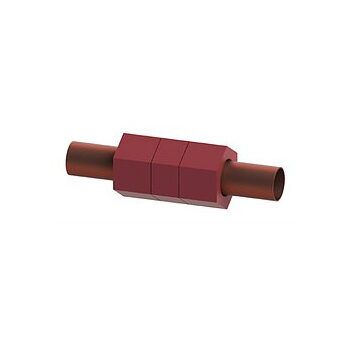

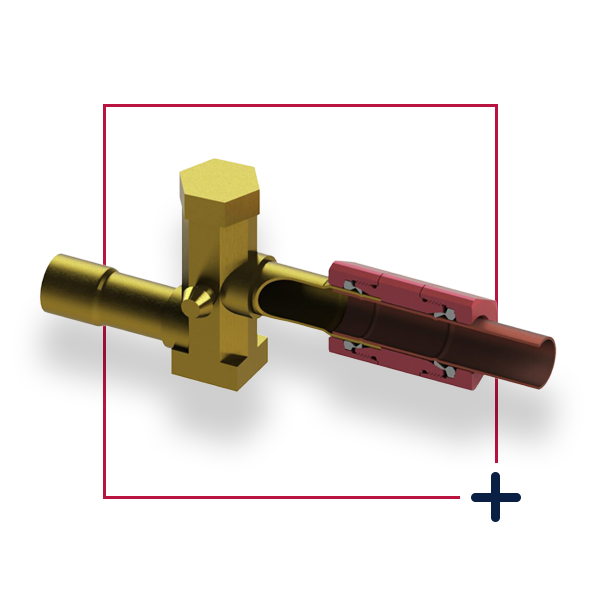

Our patented Metal to Metal Sealing Technology creates a permanent zero leak seal. SmartLock Fittings utilize metal ferrules, instead of o-ring seals, and installed with wrenches. As the outer nuts are tightened with wrenches, internal mechanism applies pressure on the metal ferrule, forcing the ferrules onto the tube and/or valves, and creating a permanent indentation that will hold up to average pressure of 1700 psi.

APPLICATION SPECIFICATION

Working Pressure Range

  • Design Pressure - Size
  • 1700 psig - 1/4"
  • 1600 psig - 3/8"
  • 1300 psig - 1/2"
  • 1300 psig - 5/8"
  • 1000 psig - 3/4"
  • 960 psig - 7/8"

Burst Pressure Range

  • Burst Pressure - Size
  • 9700 psig - 1/4"
  • 8500 psig - 3/8"
  • 8000 psig - 1/2"
  • 6800 psig - 5/8"
  • 5100 psig - 3/4"
  • 4800 psig - 7/8"

Temperature Range

-40° F to 320° F (-40°C to 150°C)

Refrigerant

Authorized for use in ANY refrigerants

R-717(Ammonia), R-410A (R-32 50%, R-125 50%), R-22 (Chlorodifluormethane), R-134a (1,1,1,2-Tetrafluoroethane), R-744 (Carbon dioxide)

TUBE MATERIAL COMPATIBILITY

Compatible for Copper & Aluminum Tubing


CU+CU

Applicable for Hard & Soft Copper Tubes


AL+CU

No dissimilar metal corrosion issues


AL+AL

Only AL compatibility on the market
