Tips for Swaging Copper Pipe

Mastering the art of pipe joining is essential for any HVAC professional looking to deliver a leak-free system. While traditional methods involve various couplings, swaging copper pipe allows you to expand one end of a tube to fit another of the same diameter, creating a custom joint. However, to ensure these joints are safe and durable, you need the right technique and the right technology.

At SmartLock, we advocate for precision. Whether you are using traditional methods or upgrading to our Smart Refrigerant Fittings, these tips will help you achieve the perfect fit. Find a distributor near you today.

Prep for a Clean Expansion

Before you even pick up your copper swage tool, preparation is everything. You must ensure the pipe is cut squarely and thoroughly deburred. Any small copper shards left inside can cause micro-scratches during the expansion process, leading to potential leak paths. When you prepare the surface correctly, you ensure that your swage fittings sit flush, providing the structural integrity needed for high-pressure refrigerant flow.

Annealing and Tool Alignment

To avoid cracking the copper, ensure the material is soft enough for expansion. If you are working with hard-drawn copper, a quick bit of heat (annealing) can prevent splitting. When swaging copper pipe, keep your tool perfectly centered. Misalignment can lead to uneven wall thickness, which compromises the joint. For those looking to skip the hassle of manual expansion, switching to Brazeless HVAC Fittings or Flare-less HVAC Fittings provides a factory-precision seal without the risk of thinning the pipe walls.

Consistency Over Force

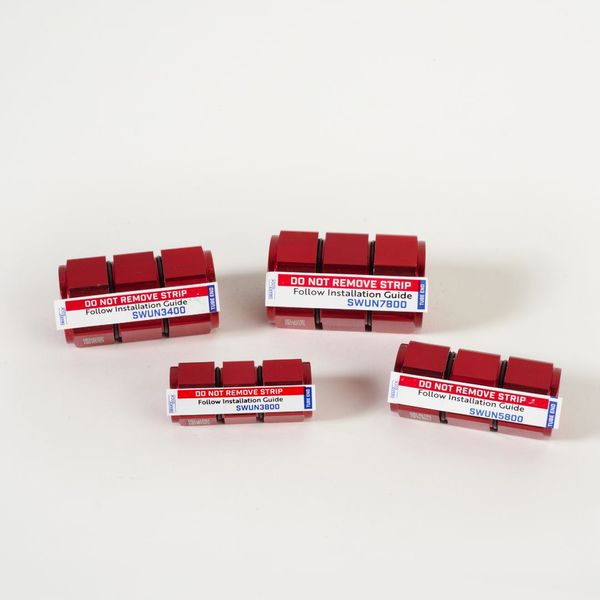

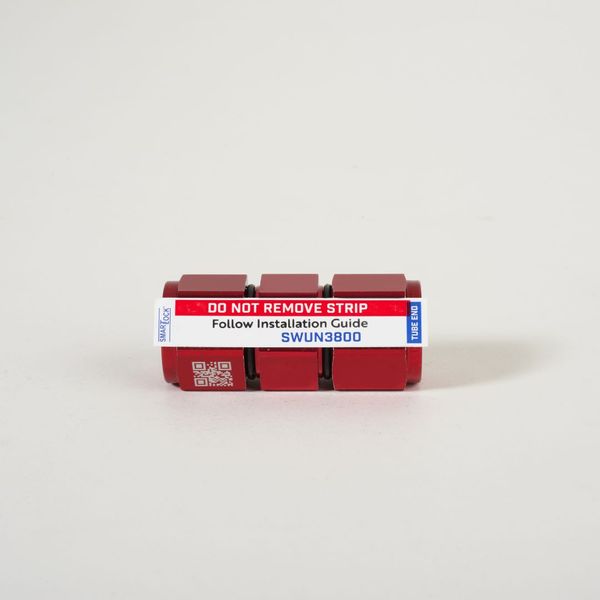

Whether you are working with refrigerant lines or swage hose fittings, consistency is key. Avoid over-expanding the pipe, as this stretches the copper molecules too thin, making it brittle. The goal is a snug "slip-fit." If you find that manual swaging is taking too much time or resulting in inconsistent joints, our Smart Refrigerant Fittings offer a streamlined alternative that guarantees a permanent, metal-to-metal seal every time.

FIND A DISTRIBUTOR

Swaging is a foundational skill, but as the industry evolves, so should your toolkit. By following these tips and utilizing high-quality copper swage techniques, you can improve your efficiency on-site. However, for the ultimate peace of mind and a flame-free workspace, SmartLock’s advanced fitting technology is the modern professional's best friend. Find a distributor near you today.

Find a Distributor

Tags: Brazeless HVAC Fittings Flare-less HVAC Fittings Smart Refrigerant Fittings
